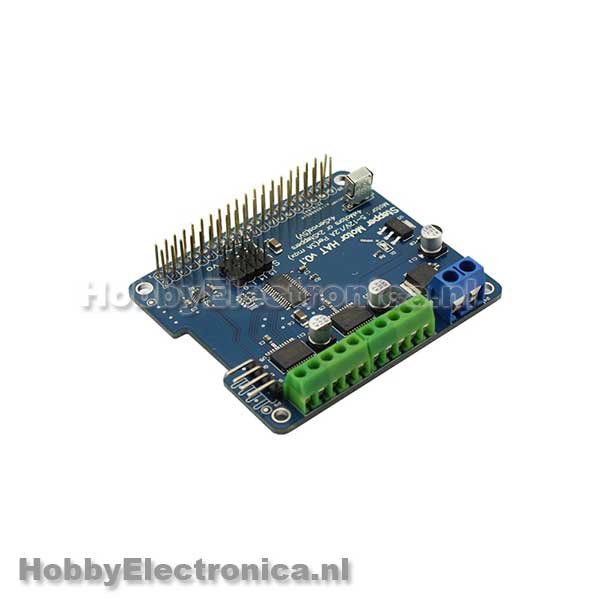

Stepper Motor HAT Raspberry Pi

Beschrijving

Stepper Motor HAT Raspberry Pi een allround shield voor de Raspberry voor het aansturen van verschillende stappen, servo en DC motoren.

Stepper Motor HAT Raspberry Pi specificaties:
– Supports 2 road 6V~12V stepping motor
– Supports 4 roads 6V~12V Gear motor
– Supports 16 roads PWM Channel output
– Single power supply for normal supply voltage range of 5v to 12v
– Shares 12 bit resolution and could adjust PWM up to 1.6KHz
– Supports Infrared receiving function for handy Infrared control
– Supports 4 roads Rudder interface,3P standard interface for convenient connection of 5V rudder and LED
– One I2C connector which is compatible with 3.3v/5v and also suitable for other Arduino and expansion boards on market
– 4 H-Bridges:provides 1.2A per bridge (3A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 5VDC to 12VDC.
– Works best with Raspberry Pi model A+, B+, or Pi 2;
– Handleiding
