Beschrijving

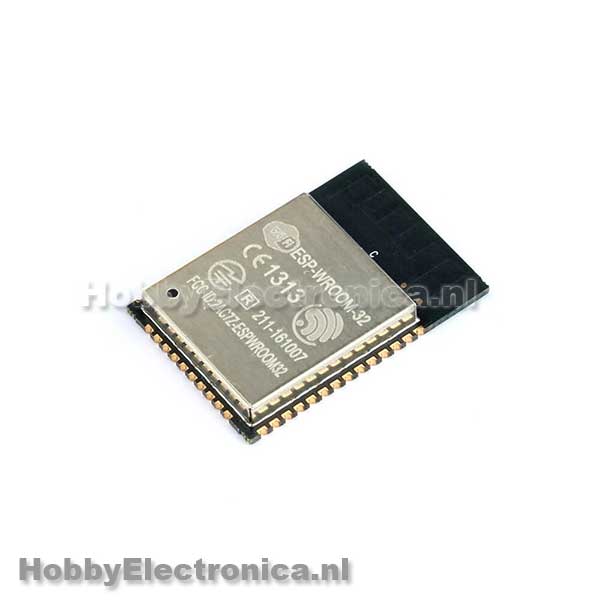

ESP32 WiFi BT BLE MCU ESP-WROOM-32. ESP-WROOM-32 is een krachtige universele WiFi-BT-BLE MCU module voor allerlei toepassingen, van low-power sensor netwerken tot de meest veeleisende taken zoals spraakcodering, muziek streaming en MP3-decodering. ESP8266 brengt WiFi naar een klein en goedkope chip, maar heeft ook genoeg verwerkingsvermogen en pinnen. WiFi 802.11b / g / n / e / i en Bluetooth v4.2 BR / EDR & BLE standaard.
Let op dit is alleen de module geen compleet development bord.
ESP32 WiFi BT BLE MCU specificaties:
– ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors
– 448 KBytes ROM for booting and core functions
– 520 KBytes on-chip SRAM
– 8 KBytes SRAM in RTC SLOW
– 8 KBytes SRAM in RTC FAST
– 1 Kbit of EFUSE, 256 bits MAC
– WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
– Bluetooth v4.2 BR/EDR and BLE specification
– Wi-Fi mode Station/softAP/SoftAP+station/P2P
– Security WPA/WPA2/WPA2-Enterprise/WPS
– Encryption AES/RSA/ECC/SHA
– IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
– Interfaces: SD-card, UART,SPI,SDIO,I2C,LED PWM,Motor PWM,I2S ,IR,GPIO, capacitive touch sensor, ADC,
– DAC, Hall sensor, temperature sensor
– Operating temperature -40 + 85C
– Operating voltate: 2.2-3.6V
– Consumption: 80 mA typ

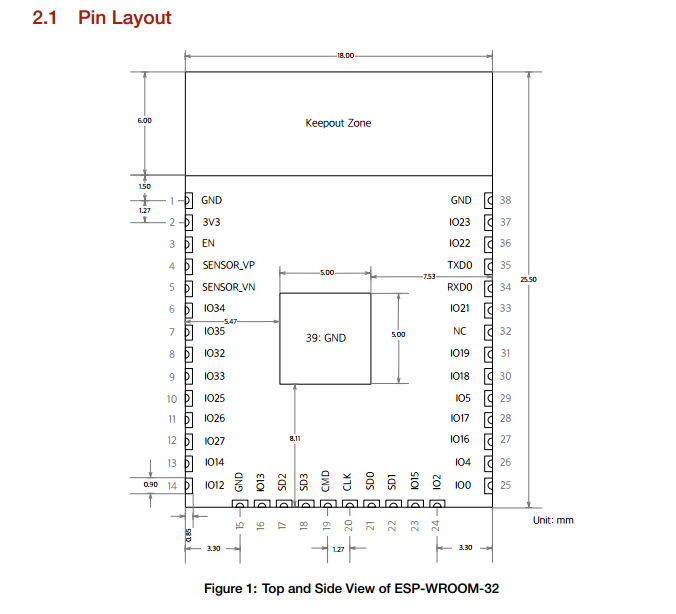

– Dimensions: 18 mm(L) x 25.5 mm(W) x 2.8 mm(H)
– Pin pitch:1.27mm
– Shielding can height: 2 mm
– PCB tickness: 0.8±0.1mm
