Beschrijving

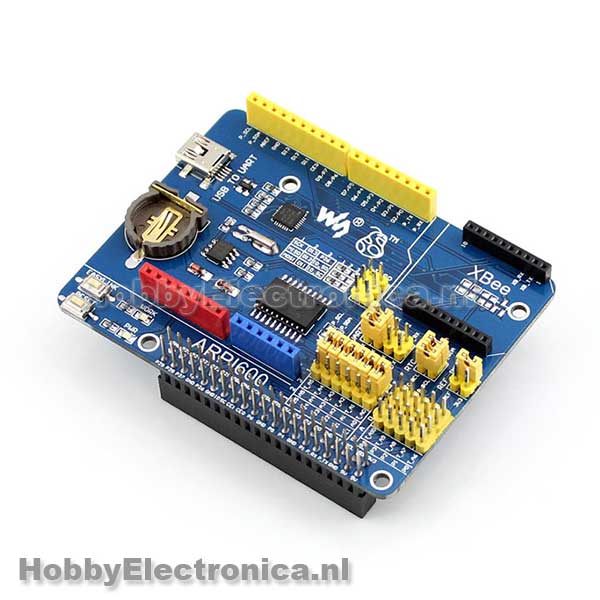

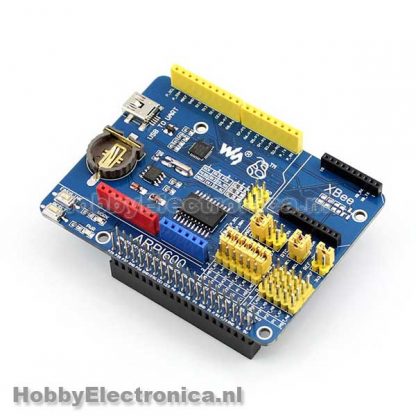

ARPI600 Arduino Adapter Raspberry Pi maakt je Pi geschikt voor Arduino shields. De ARPI600 heeft ook ondersteuning XBee modules. Support de Raspberry Pi A+, B+ en 2 B.
ARPI600 Arduino Adapter Raspberry Pi links:
– Introduction
– Handleiding
– Schema
– Code
– Wiki

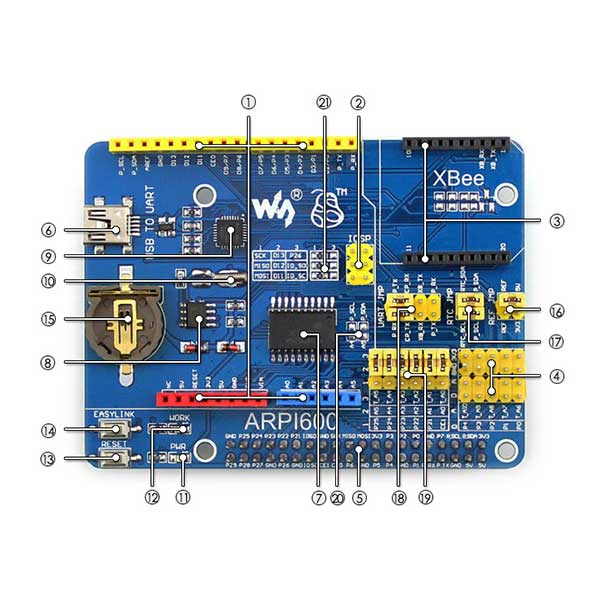

1. Arduino connector : for connecting Arduino shields
2. ICSP interface : Arduino ICSP
3. XBee connector : for connecting XBee communication modules
4. Sensor interface : for connecting sensors
5. Raspberry Pi connector : for connecting Raspberry Pi
6. USB TO UART
7. TLC1543 : AD converter
8. PCF8563 : RTC
9. CP2102
10. 32.768KHz crystal : for RTC
11. Power indicator
12. XBee state LED
13. XBee and Arduino interface RESET button
14. XBee EASYLINK button
15. RTC battery holder : for CR1220 button battery
16. TLC1543 reference voltage configuration jumper
17. RTC jumper
18. UART jumper
